Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Angle | Right Angle |
| Body Material | Zinc Die-Cast |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Silver |
| Current Rating | 16 A |
| Insulation Type | Insulated |
| Mounting Type | Cable |
| Number of Contacts | 3 |
| Primary Type | XLR |
| Product Header | RX Series XLR Cable Connector |
| Series | |
| Termination | Solder |
| Type | Jack |
| Voltage Rating | 50 V |
Overview

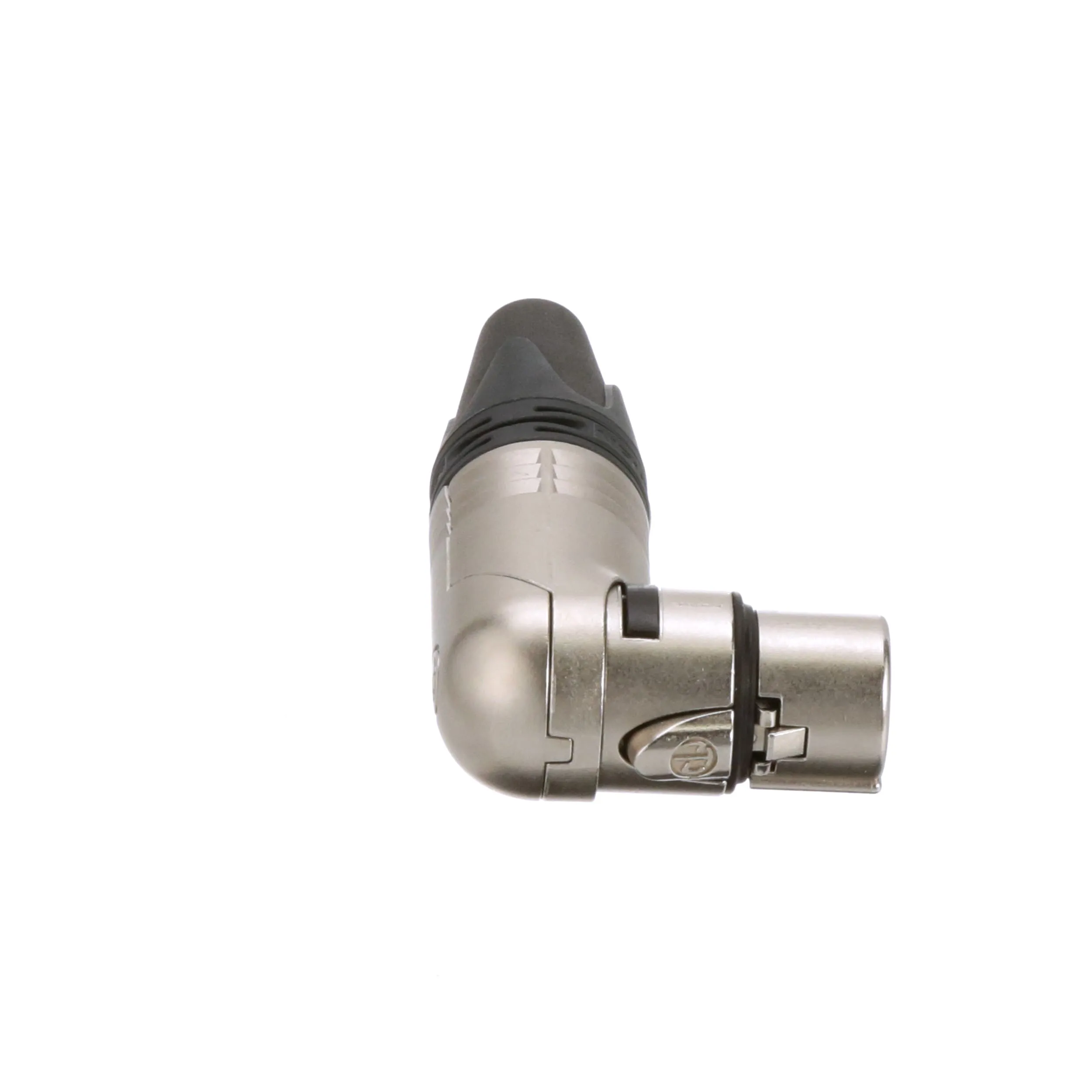

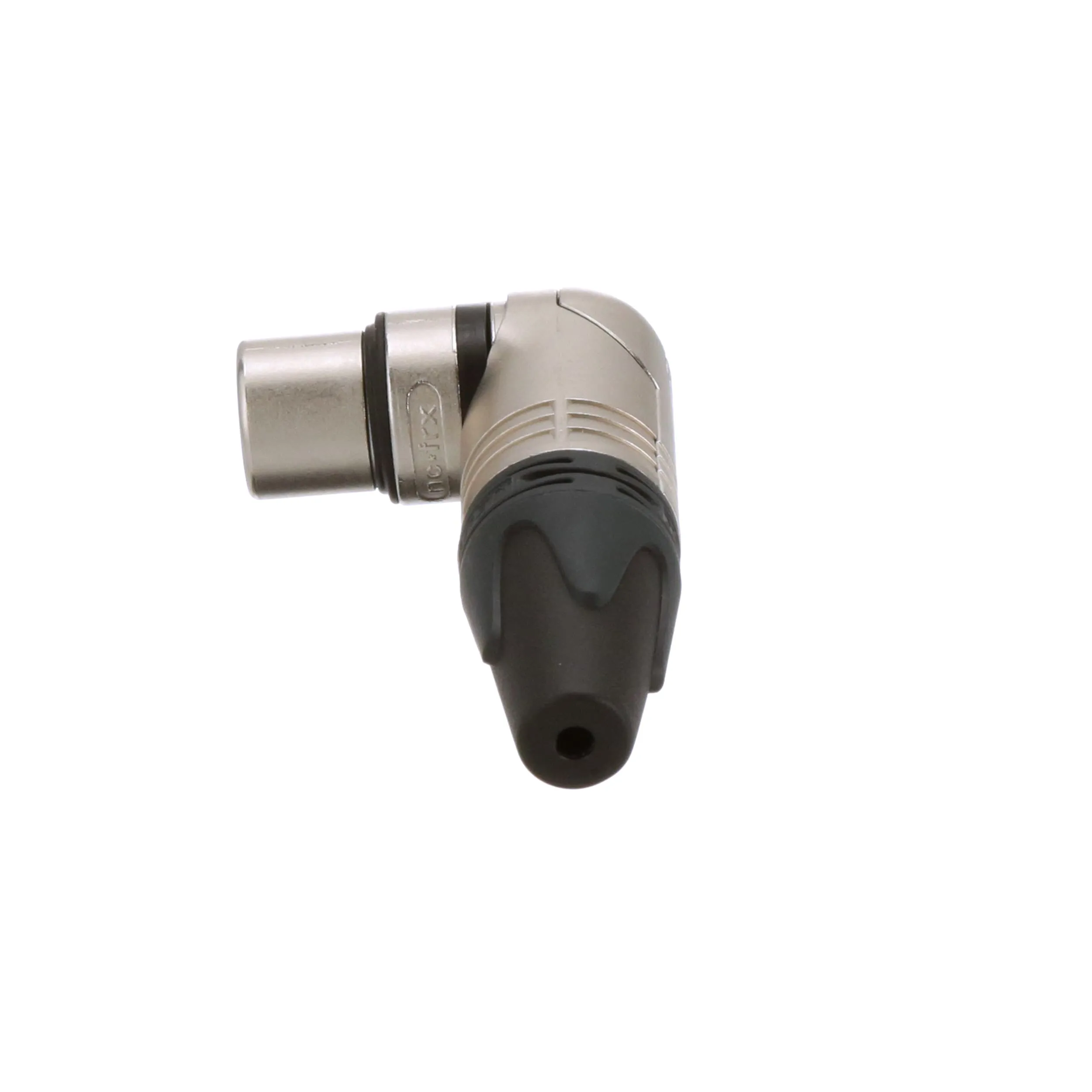

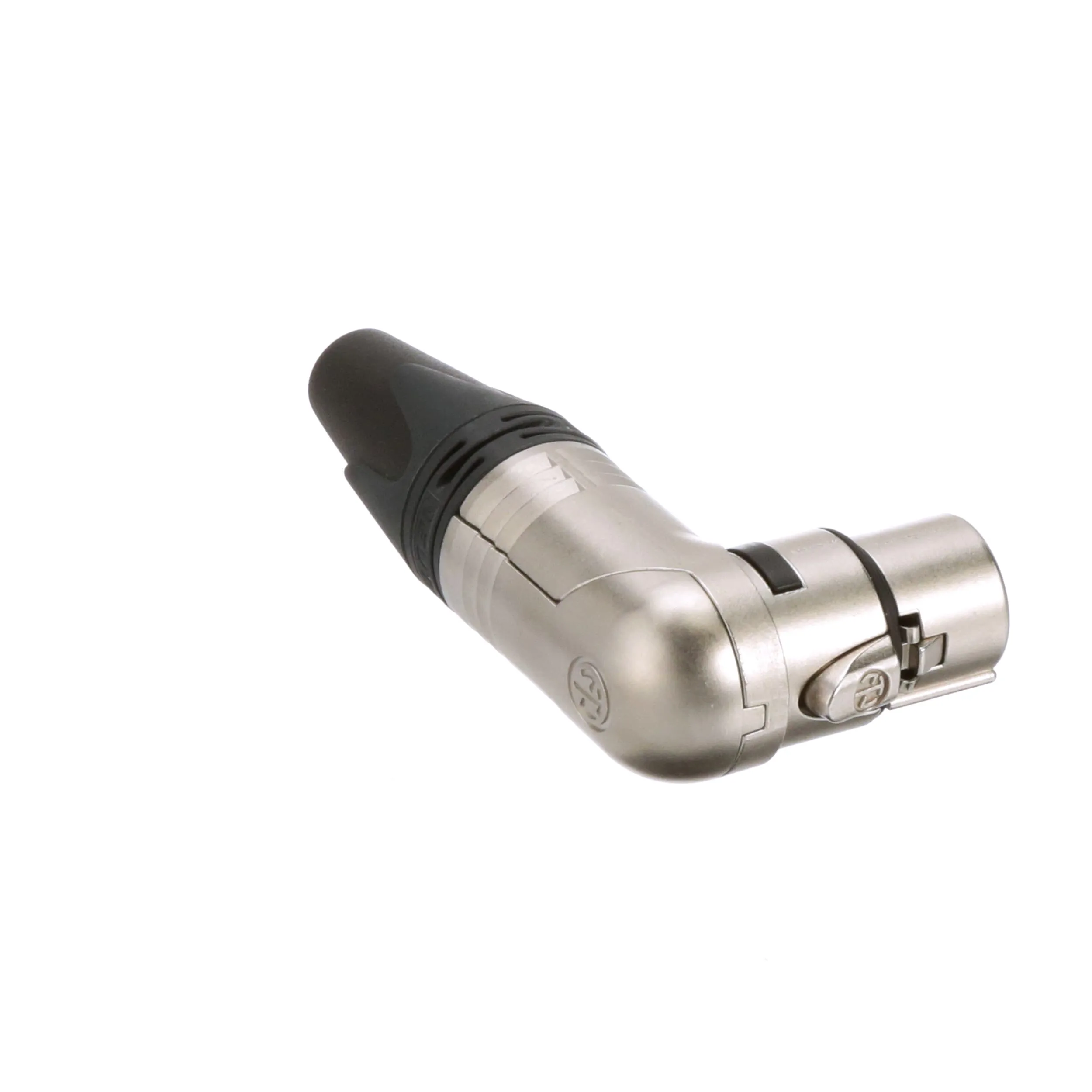

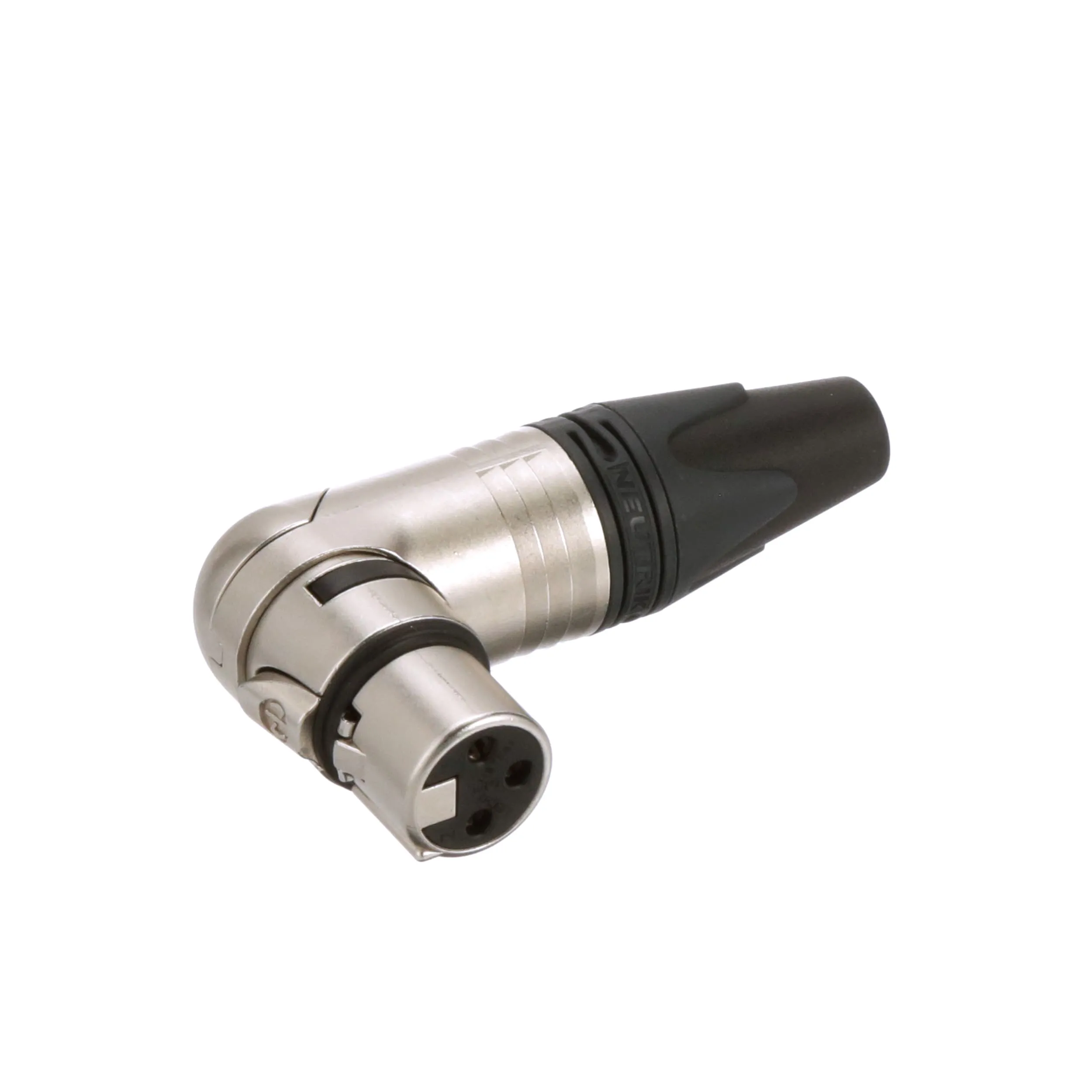

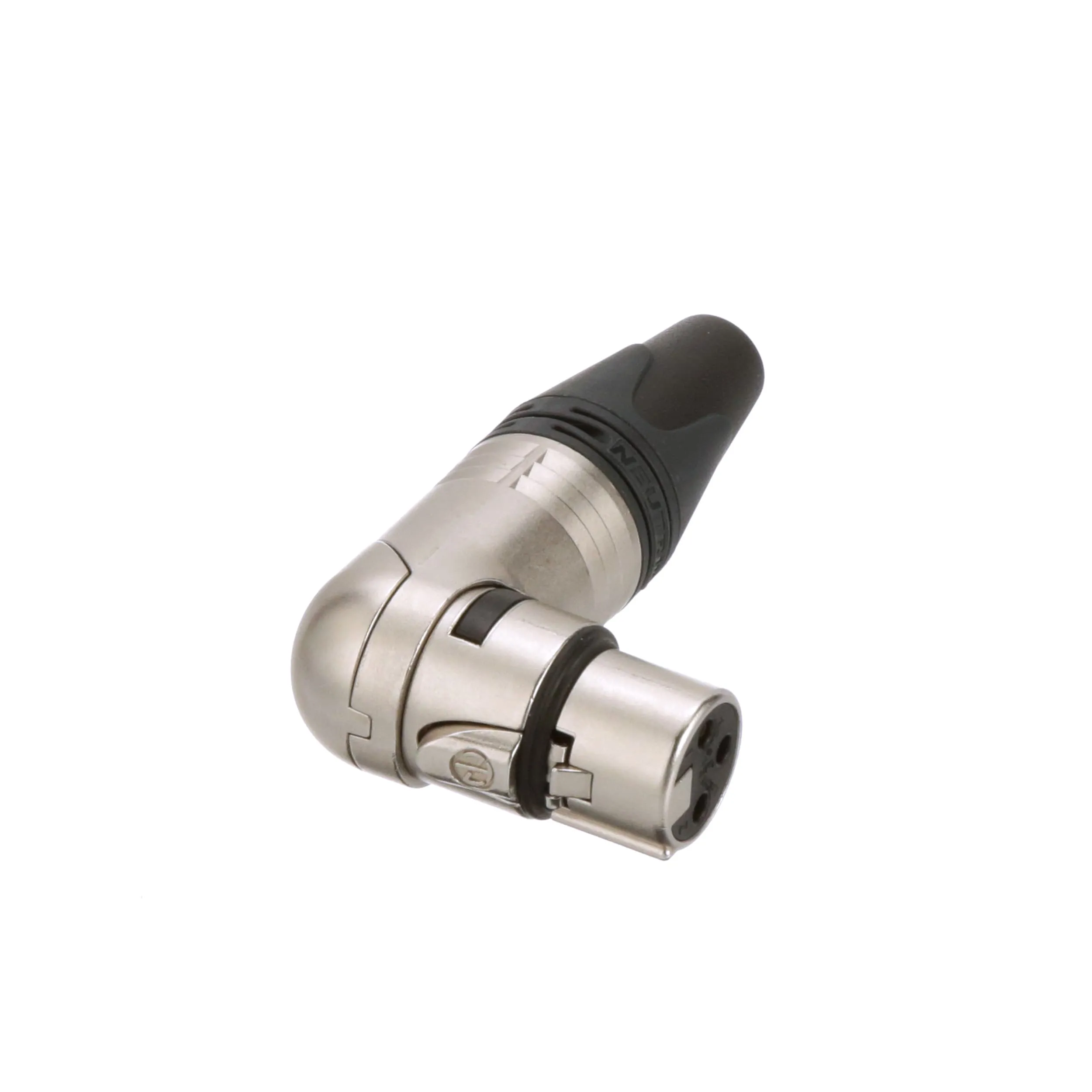

RX Series XLR Cable Connector
Shells: Die cast zinc. Insets: Fiberglass reinforced hard polyester. Standard satin nickel housing and silver contacts. “B” suffix on the manufacturer's number designates black chrome housing and gold contacts. Black chrome housing and silver contacts are also available. Female connectors have self-retentive release latch lock. Configuration: All XLRs available in 3-7 pin configuration including 6-pin Switchcraft® configuration. Color rings and color boots are available in 10 different colors.
